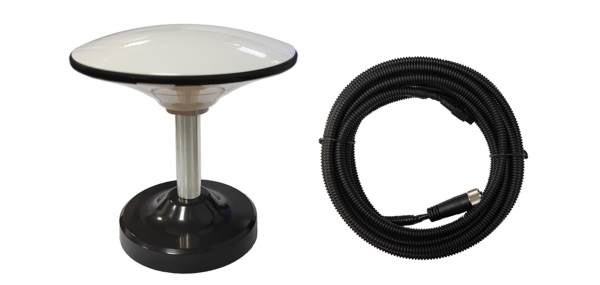

尺寸:直徑145mm BK1662N芯片 L1+L2雙頻 北斗單模 帶RTK算法 配備柱子和底座 ，PX7防水
Features
n Build on high performance, low-power BK1662N chip set
n Ultra high Track sensitivity: -165dBm
n Concurrent reception of dual-band (L1&L2) and BDS-system satellite signals
n Supports all civil BDS signals
n Supports BDS-3 signal
n Supports RTK; Protocol:RTCM 3.3
n Extremely fast TTFF at low signal level
n Multipath detection and suppression
n Works with passive and active antenna
n Low power consumption: Max 78mA@3.3V
n NMEA-0183 compliant protocol or custom protocol
n Operating voltage:3.0V to 5.5V
n Patch antenna size:60*60*8&40*40*4mm
n Small form factor: D=145mm, H=60mm
n Communication type: RS232
n Wire interface type: Molex 4Pin,L=500±50cm with corrugated sleeve
n Weight: Approx. 340g (±2%)
n Waterproofing grade: IP67
n Operating temperature -40 ~ +85oC
n RoHS compliant (Lead-free)
Functional Description
Parameter | Specification |
Power supply | ? Supply voltage: 3.0V~5.5V Typical: 3.3V |
Power consumption | ? Acquisition: 75mA @VCC=VBAT=3.3V ? Tracking: 78mA @VCC=VBAT=3.3V ? Standby: 2.0mA @VCC=3.3V ? Backup: 20uA @VBAT=3.3V |
GNSS engine | ? 200 tracking channels with fast search engine |
GNSS reception | ? BEIDOU: B1I.B1C.B2B.B2I.B3I |
Update rate | ? GNSS: 20Hz Maximum,1Hz by default ? RTK: 10Hz Maximum,1Hz by default |
RTK | ? RTCM3.3 |
Position accuracy | ? GNSS: 1m CEP ? RTK: 25px+1ppm (CEP50） |
Velocity & Time accuracy | ? GNSS: 0.01m/s CEP ? SBAS: 0.05 m/s ? 1PPS: 20 ns |
Time to First Fix(TTFF) | ? Hot start: 5 s ? Cold start: 28 s ? AGPS: 1.5s ? RTK initialization time: ≤10s ? RTK Re-acquisition time: ＜2s |
Sensitivity | ? Cold start: -148dBm ? Hot start: -165dBm ? Re-acquisition: -159dBm ? Tracking & navigation: -165dBm |
GNSS Operating limit | ? Velocity: 515m/s ? Altitude: 18000m |
Datum | ? Default WGS-84, User definable |
RS232 Port | ? RS232 Port: RS232_TXD and RS232_ RXD ? Supports baud rate : 9600 , 38400 , 115200 , 230400 , 460800 , 1000000 , 2000000, 115200bps by default. ? NMEA 0183 Protocol Ver.4.10, BK GNSS Receiver Protocol ? Supports batch data report mode |
Temperature Range | ? Normal operation: -40°C ~ +85°C ? Storage temperature: -40°C ~ +100°C ? Humidity: 5% ~ 95% |
